Gullies for vinyl flooring

resilient design for frequent use

THE NEXT GENERATION OF DESIGN GULLIES FOR VINYL FLOORING

A vinyl floor can be both beautiful and practical. Purus Line Vinyl Plus gives you a linear design solution with good slope integrated in a hygienic, durable and easy-to-clean floor. Ideal for environments such as gyms and healthcare facilities.

Established collaborations with Europe’s leading vinyl floor manufacturers enable us to develop and deliver solutions at the forefront. Our ambition is to continue to offer the best design floor gullies for vinyl flooring in Europe.

“Our ambition is to continue to offer the best design floor gullies for vinyl flooring in Europe.”

dowload product overview with design gullies for vinyl flooring

12-page brochure, available in several different languages, choose the one that suits you best!

Skip the usual grates and go for A design option

The couloured gratings have been treated using PVD, Physical Vapour Deposition technology, that gives a highly durable surface and a long service life.

experienced market leader from the nordics

We are proud to have our own manufacturing facilities in Sweden, which gives us full control over quality and delivery reliability. We have become the market leader in the Nordics thanks to extensive experience, cutting-edge expertise in technology and manufacturing, and production resources with high manufacturing capacity in plastic and stainless steel.

Quality is one of our watchwords, and it permeates our choice of materials and manufacturing. Another aspect of quality is that our production units constantly focus on minimising material waste, and ensuring that waste is recycled.

We can offer custom manufacturing upon request. Feel free to challenge us!

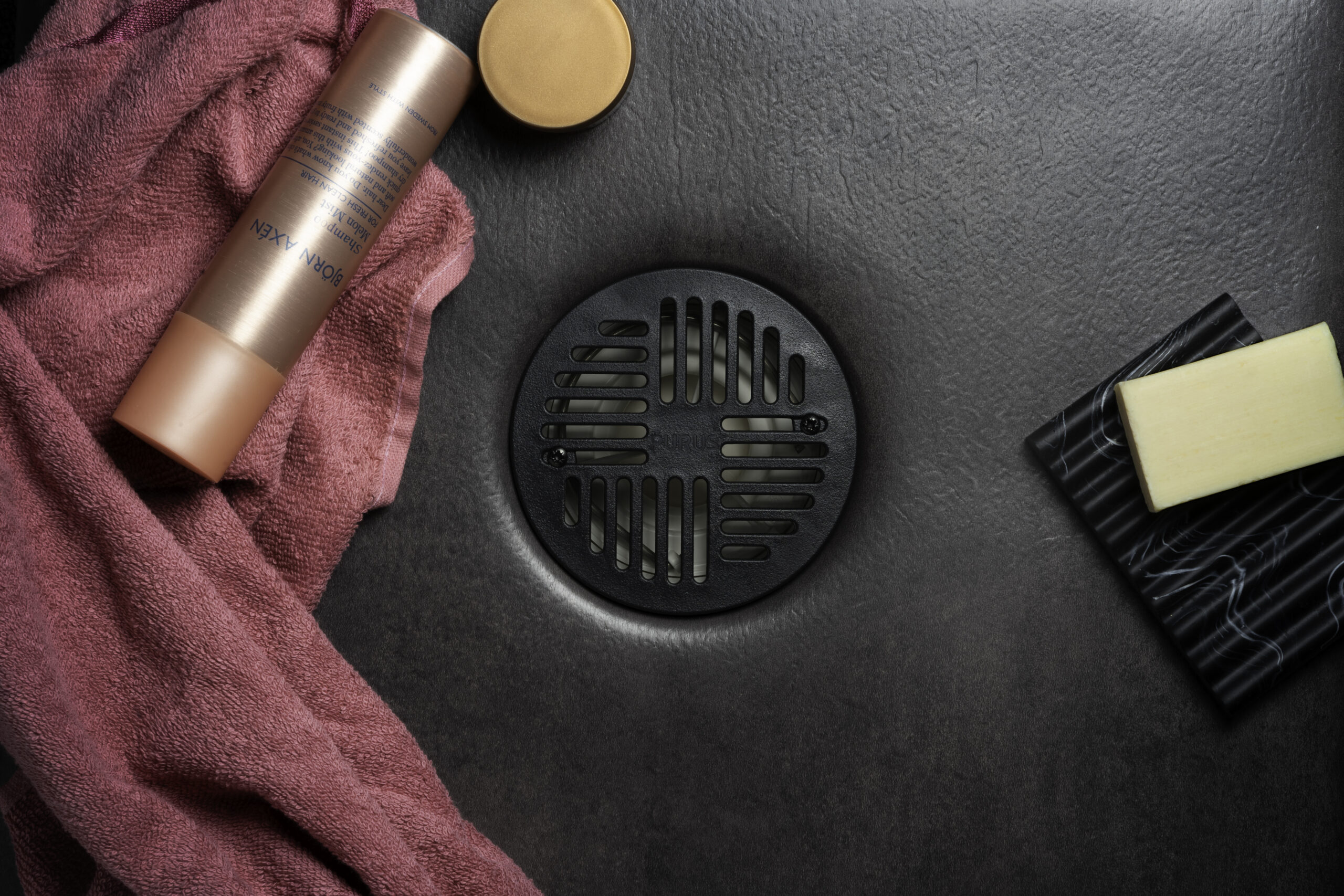

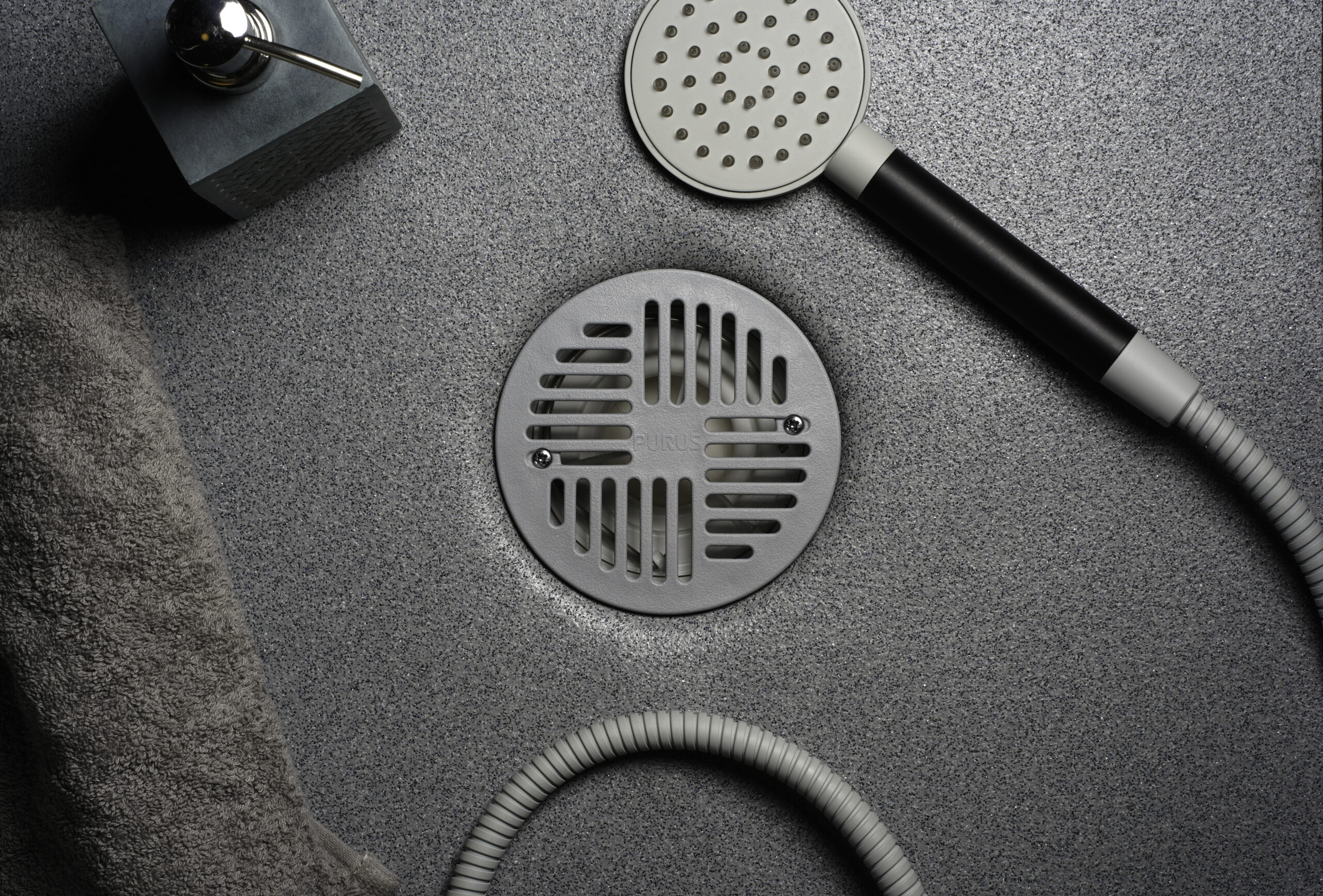

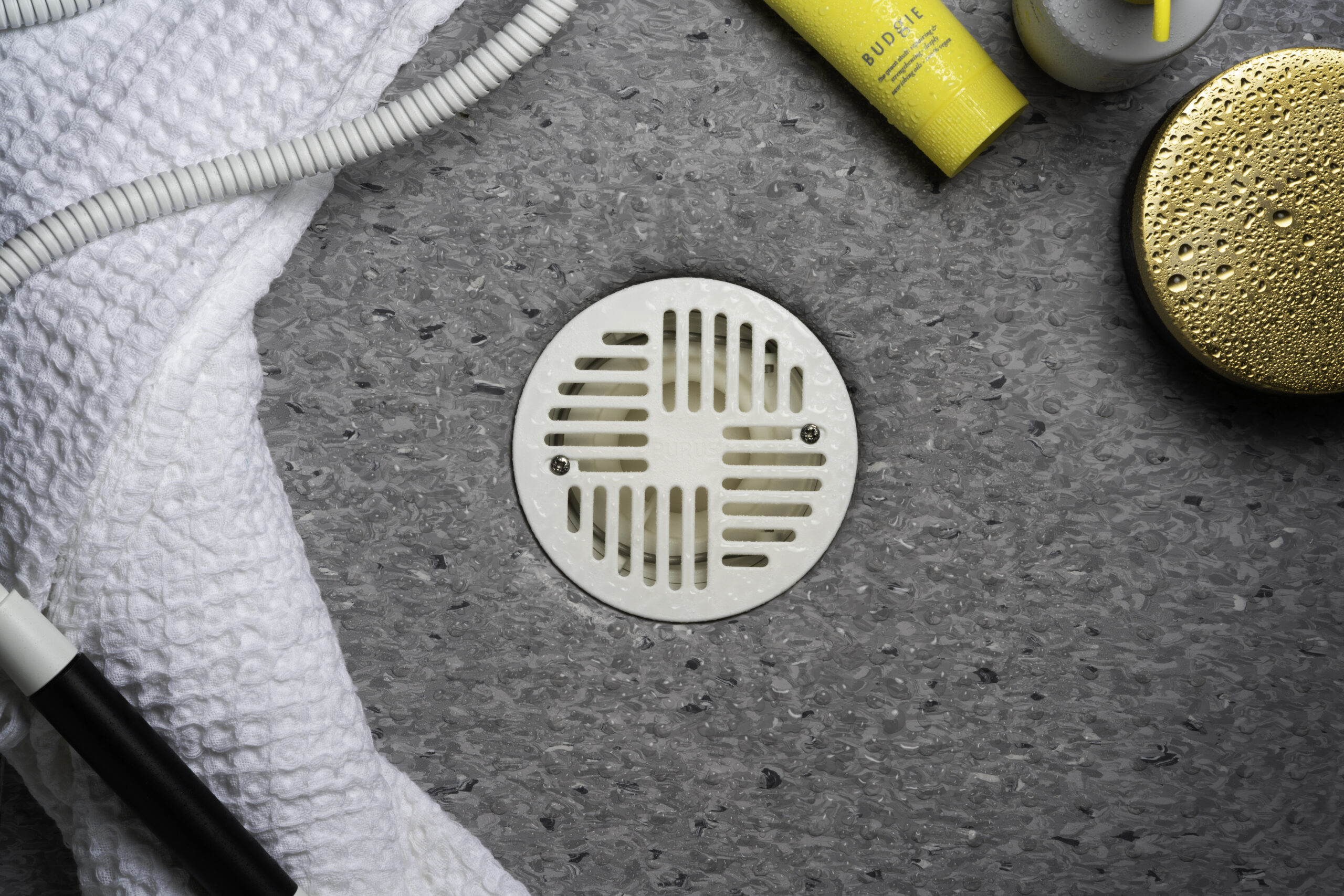

GRATINGS IN GREY OR BLACK RECYCLED PLASTIC OR CLASSIC WHITE?

linear shower drains

Bring your decor style into the bathroom with our linear design floor gullies. The Purus Line Vinyl Plus series provides an easy-to-clean, wear-resistant and stylish floor. The screwed clamp frame in 2 mm stainless steel provides a secure, waterproof connection. The grates’ screwed locking is usually appreciated in health-care environments, as well as its softly rounded corners and no sharp edges to stand or drive on.

The Purus Line Vinyl Plus comes with a removable NOOD water trap, stainless steel clamping ring, stainless steel patterned Chess grate and a concrete installation kit. Note that the Purus Line Vinyl Plus in accordance with applicable building regulations in some markets must be installed at least 200 mm from the wall. Check what applies where the installation is to take place.

Choose side or end outlet in dimension Ø 50 or 75 mm, available in different heights. The stainless grating are available in various colours and length versions 600, 700, 800, 900 and 1000.

Purus Line Vinyl Plus

traditional floor drains Ø130

From our wide assortment you can be quite sure to find a model that suits the requirements for your next project. We have a complete range of floor gullies for many different applications. All of them create a secure connection to the water proofing membrane and flooring material, which provides the best leakage protection, is hygienic and easy to clean with high capacity.

We always strive to facilitate the installer’s work to ensure an optimal end result. For example, our proven automatic clamping ring is quick and easy to mount and secures to the water proofing membrane. We also have products with a screwed stainless steel clamping ring that can handle even homogeneous vinyl floormats that are more than 2 mm thick.

Ensure a proper fit between the gully and the watersealing membrane by using the Purus knife to cut out the hole. Applies to all models with automatic clamping ring. Add a grating in plastic or stainless steel.

MiniMax

Accessories and spare parts

Floor gully fixture Midgård

The range includes smart tools for easy and safe mounting. Purus mounting plates must be used in wooden joists. In concrete floors we recommend the Purus gully fixtures.

Purus knife
Purus knife Ø 130 mm

The Purus Knife is a tool for cutting vinyl flooring and waterproof membranes within the perimeter of the floor gully. The  Ø 130 mm diameter model suits floor gullies like the Minimax and Mini Brage. The Purus knife also comes in sizes; Ø 80, 150 and 220 mm. Possible to update when needed with a set of spare blades.

Clamping ring automatic 130
Clamping ring automatic 130

Our automatic clamping ring is easy to mount without the need for screws. To ensure a proper fit between the gully and the watersealing membrane, the Purus knife should be used to cut out the hole .

traditional floor drains Ø150

Purus has a complete range of floor gullies for a wide range of indoor applications for different types of floors such as, tile floors, concrete floors, expoxy floors or vinyl floors.

Our high quality drains, whether in plastic or in stainless steel, have very high mechanical resistance and a long lifespan. Another common denominator is that they create a secure connection to the water proofing membrane and flooring material, which provides the best leakage protection, are hygienic and easy to clean with high capacity.

At each product web page, you can download installation instructions, specifications, certificates, etc.

Purus unique NOOD water trap is available in plastic or stainless steel and fits most models. NOOD prevents odour spreading even if the water trap dries out. It’s also a good protection against backwater and pests.

Oden

Industrial RANGE for big flows

Purus has a complete range of floor gullies for a wide range of indoor applications for different types of floors such as, tile floors, concrete floors, expoxy floors or vinyl floors.

Our high quality drains, whether in plastic or in stainless steel, have very high mechanical resistance and a long lifespan. Another common denominator is that they create a secure connection to the water proofing membrane and flooring material, which provides the best leakage protection, are hygienic and easy to clean with high capacity.

At each product web page, you can download installation instructions, specifications, certificates, etc.

All Purus channels are made of acid-proof stainless steel, quality EN 1.4404, as standard. After welding in the stainless steel, our entire products (not just the weld joints) are pickled for increased durability.

Purus channel 100 vinyl

Selectable grates for purus channels according to the load requirements

Grating Chess with load class K3 (300 kg) for walking traffic/barefoot friendly
Grating Rib with load class K3 (300 kg) for walking traffic/barefoot friendly
Mesh grid with load class L15 (1500 kg) for easier driving traffic
Mesh grid with load class M125 (12 500 kg) for truck and traffic
