Product news
Purus is expanding its range of grates for floor channels made of acid-resistant stainless steel with R50 – a load class that fills the gap between L15 and M125. With a capacity that can withstand 5,000 kg, R50 is an optimal choice for medium-heavy traffic, such as passenger cars, transport trailers and small trucks.
Grates with the designation R50 fits perfectly in environments where the load is too high for L15 (1,500 kg) but where M125 (12,500 kg) is oversized. This means a cost-effective and sustainable alternative for projects with regular vehicle traffic, without compromising quality or safety.
Clear classification for different applications
To facilitate the selection of the right grid, Purus has defined its load classes according to standards and typical areas of use:
- K3 – Holds 300 kg, used in barefoot-friendly environments such as bathhouses and spas.
- L15 – Holds 1,500 kg, suitable for light car traffic, hand trucks and cleaning machines.
- R50 – Holds 5,000 kg, ideal for medium-heavy traffic such as passenger cars and vans.
- M125 – Holds 12,500 kg, intended for heavy traffic with trucks and larger warehouse foklifts.
With the introduction of the R50, Purus broadens its range and makes it easier for designers and installers to choose the right load level for each environment.
Customized solutions and quality in every detail
Alla Purus stainless floor gullies and floor channels are manufactured in our own factory Smålandsstenar, Sweden, which guarantees the highest quality and long service life. The products are adapted to the customer’s needs regarding size, material and load class. After welding, each gutter undergoes a pickling process to ensure maximum corrosion resistance – a process that guarantees durability even in the most demanding environments.
Flexible alternative for every project

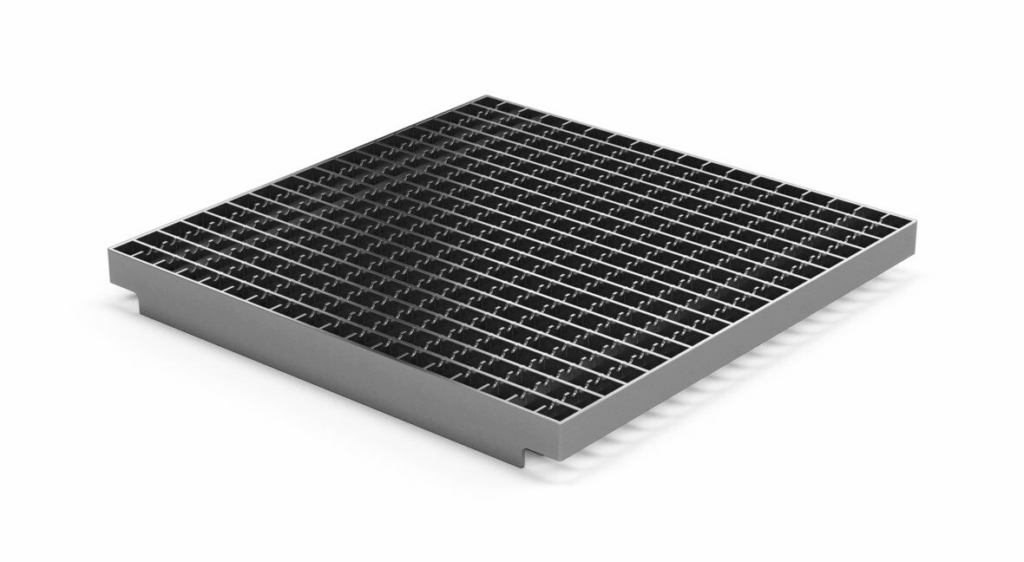

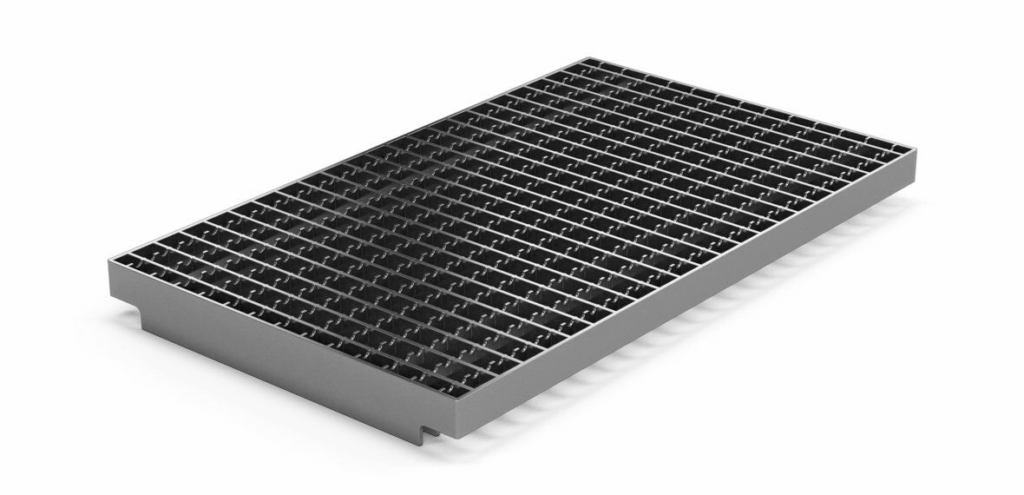

Grate R50 is offered in several widths and lengths to suit different types of installations. Available widths are 100, 150, 200, 300, 400, 500 and 600 mm, and lengths range from 200 mm to 1000 mm. The combinations can be tailored to create complete drainage solutions with channels, gullies, grates and accessories such as sand traps – depending on the project’s specific requirements.
An easy choice with The Channel Guide
To simplify the selection and configuration of products, Purus has developed The Channel Guide – a digital tool that allows the user to build their own solution step by step. Here you can easily find the right combination of channels, grates and accessories as well as send quotation requests or orders directly online.
Test The Channel Guide here and find the perfect solution for your next project!
Contact Purus for support
If you have questions or need advice before your choice of grate or channel, Purus technical support and customer service are always ready to help at info@purusinternational.com or by phone:
📞 Lisa Rundle – +46 10 41 44 900
Mon–Fri: 08:00–16:30 (GMT+1)
Closed for lunch: 12:00–13:00
