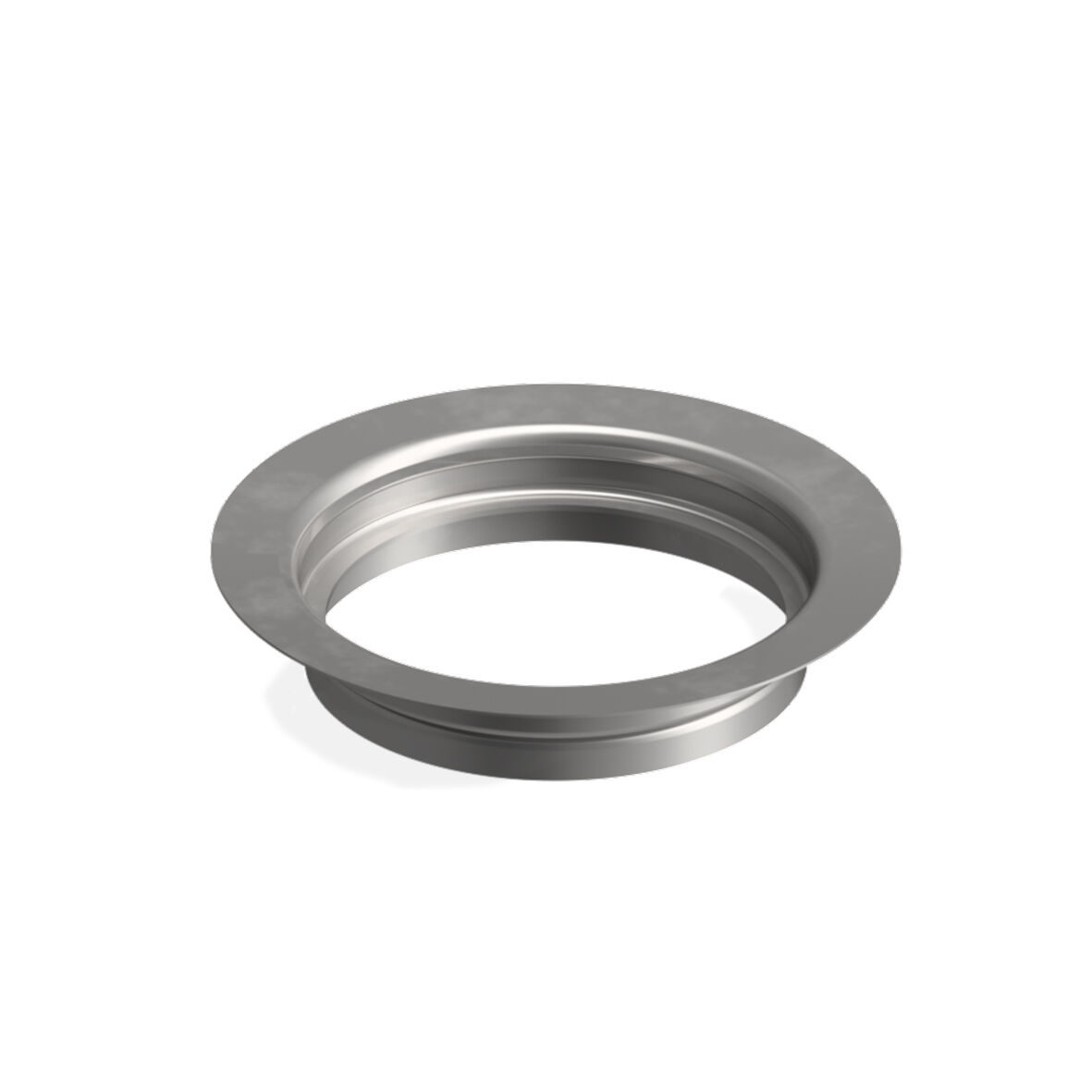

Extension ring stainless Ø150 x 16

Extension ring 16 in acid-resistant stainless steel with round flange, intended for Purus’ stainless steel floor drains with a grate diameter of 150mm. Comes with gasket. The extension ring is used when you need to raise the flange, for example when levelling concrete. Raises 16mm.

Extension ring 16 in acid-resistant stainless steel with round flange, intended for Purus' stainless steel floor drains with a grate diameter of 150mm. Comes with gasket. The extension ring is used when you need to raise the flange, for example when levelling concrete. Raises 16mm.
  • The stainless steel extension rings can only be mounted in Purus floor drains made of stainless steel
  • Quick and easy installation when the extension ring is inserted in the seat on the floor drain
RSK Number
7135153
Dimension
Ø150mm
Floor Covering
Empty
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Pressure Flow Temp
Empty
Size
Ø16 mm
Surface
Cold rolled (2B)
Installation instructions
Maintenance Instructions
