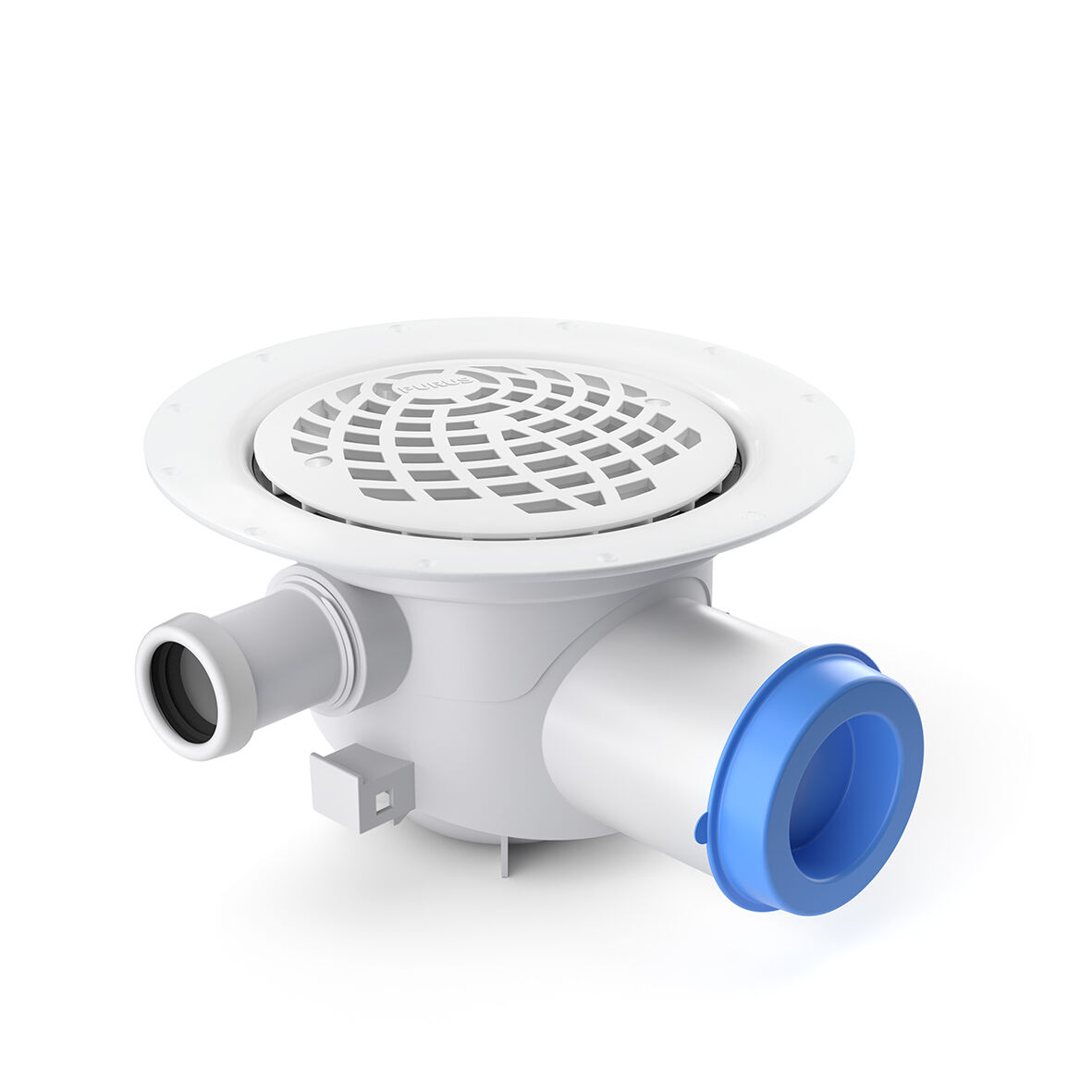

The Våke 75 side floor drain has a 75 mm side outlet and three extra Ø32 inlets. Only one of the extra inlets should be used. The floor drain has a total height of 130 mm and is suitable for installation in wooden or concrete joists. The Våke floor drain comes complete with a removable water trap, extra inlet Ø32, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain. When installing the Våke floor drain with the Utgård mounting plate, the extension ring should not be used.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built with 3 extra inlets
- The floor drain comes complete with an automatic clamping ring, water trap and grating
- Removable and divisible water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The floor drain grating is designed to prevent any residual water from pooling
RSK Number
7113580
Dimension
Ø75 mm
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Pressure Flow Temp
1,0 l/s
Size
Ø150 mm
Version
With extra inlet
Other information
Clapming ring 7141315, plastic grating 7138416, extra inlet 32and water trap 7113583 is included as standard. With 3 extra inlet. NOOD-water trap does not fit.
