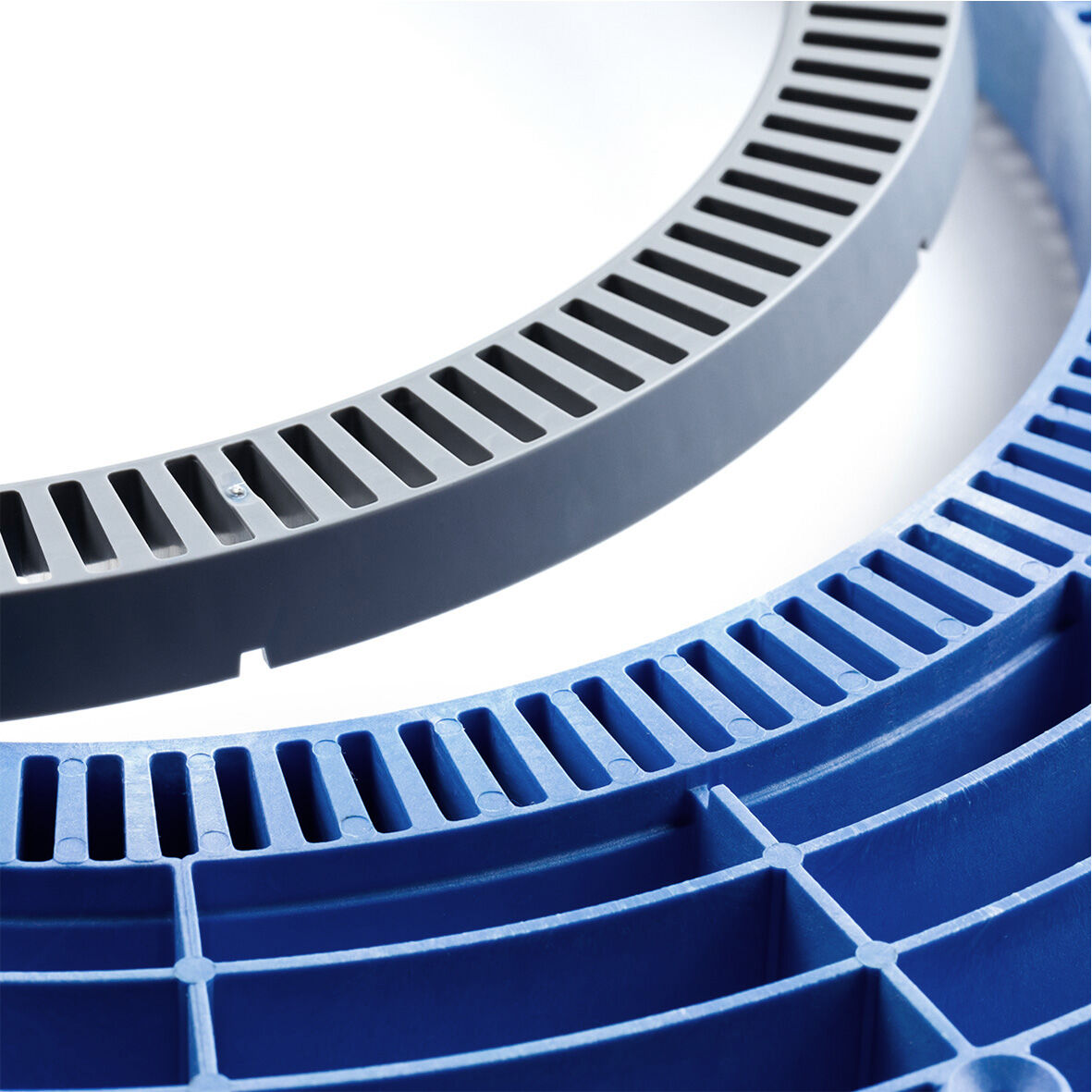

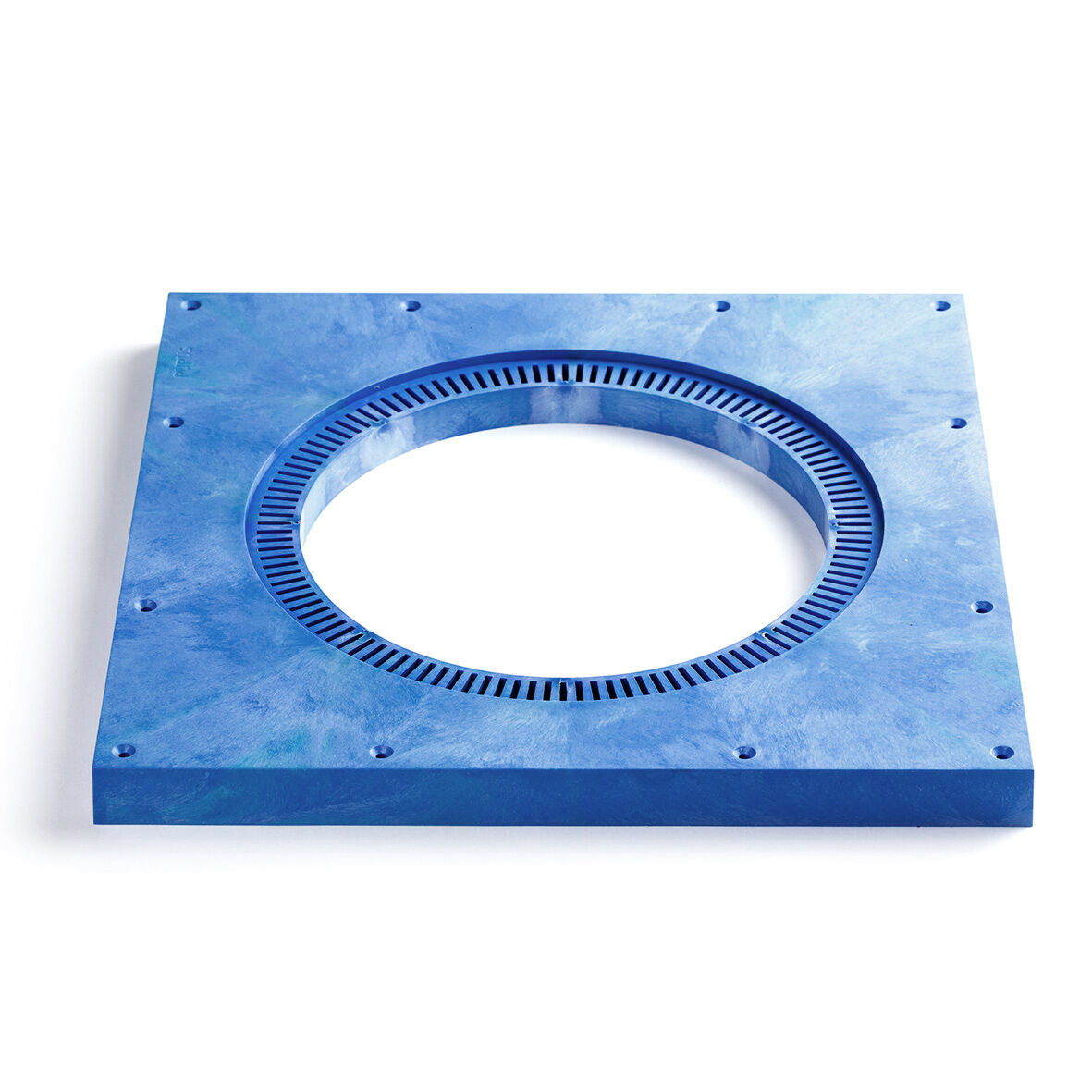

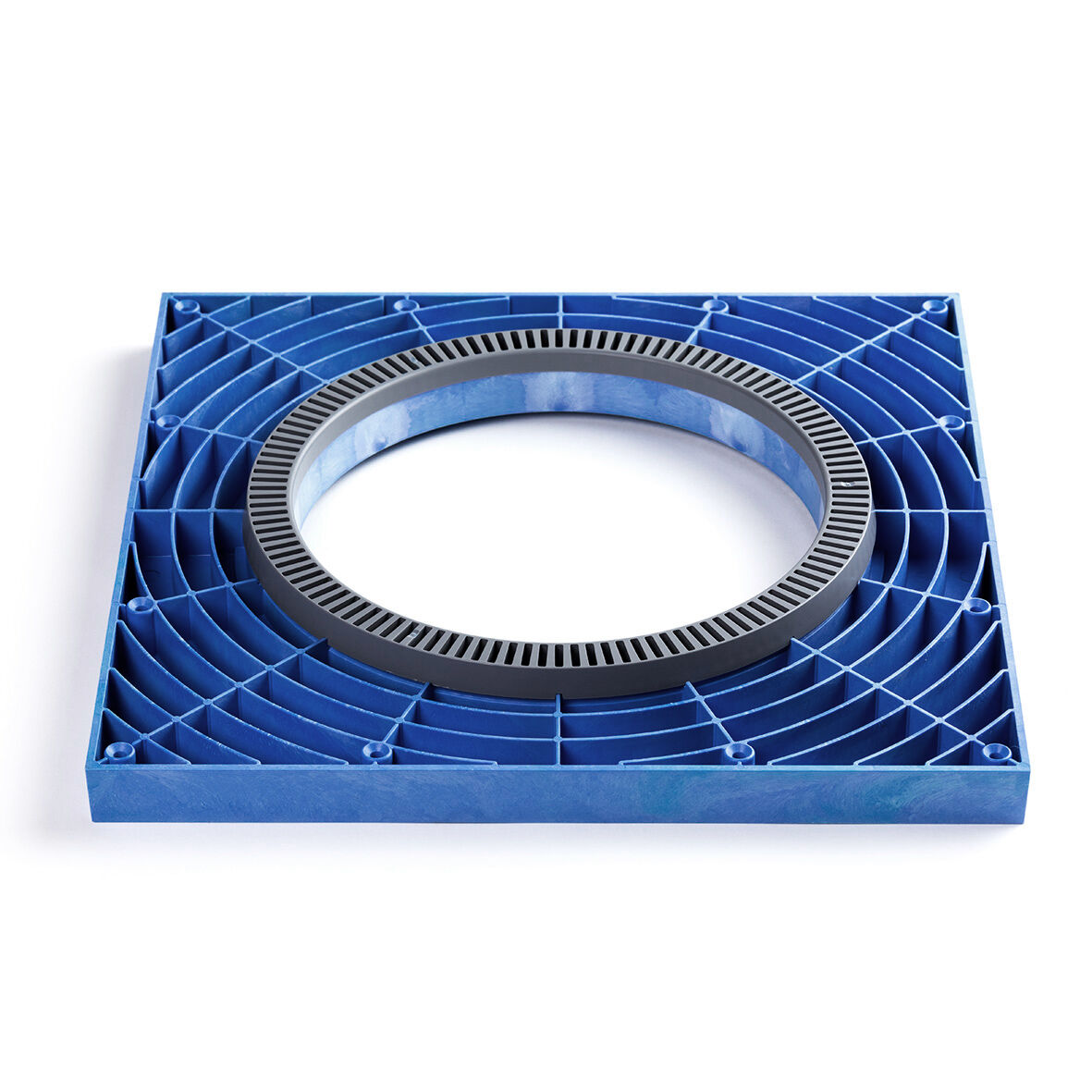

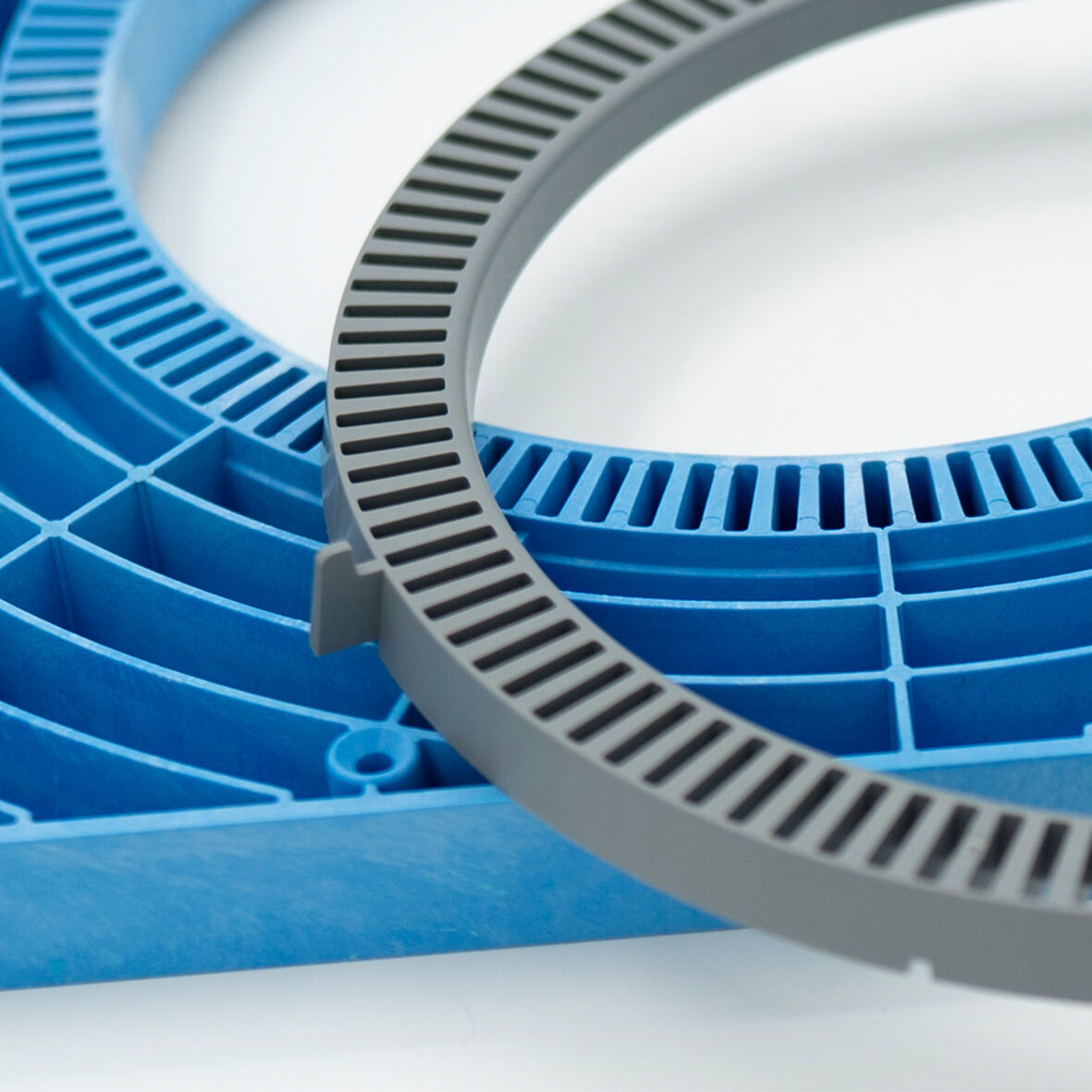

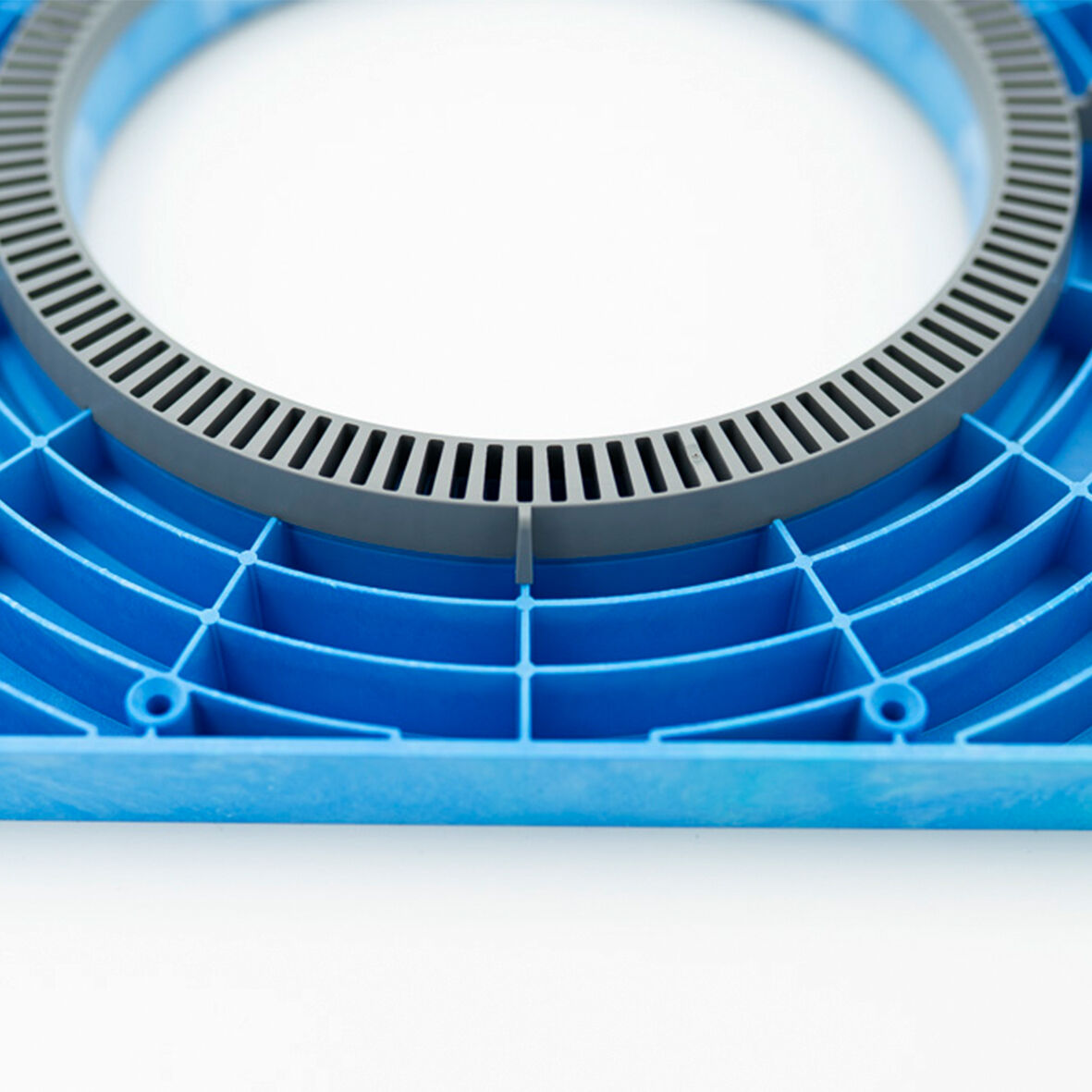

The Utgård plastic mounting plate is used together with Purus floor drains when installed in wooden joists. The mounting plate is 22 mm thick and has two sides, one ribbed and one smooth. The ribbed side is used for drop filling. If laying tiled floors, the spacer ring should be used. The smooth side is used without the spacer ring for plastic mat if drop filling is not done. The mounting plate is made of ABS plastic with a material-saving technology called MuCell. The surfaces of the plate can be glued.
This mounting plate fits the S-series, Brage, Oden, Freja, Flex and plastic shower drain. Without the spacer ring it also fits Våke, Våge and Loke.
This mounting plate fits the S-series, Brage, Oden, Freja, Flex and plastic shower drain. Without the spacer ring it also fits Våke, Våge and Loke.
- Made with MuCell technology to reduce environmental impact.
- Flexible. Smooth on one side and grooved on the other depending on whether it is an installation for vinyl or tile floors. The groove makes spackling during installation easier.
- Square, instead of round, which makes it easier when sawing.
RSK Number
7135138
Floor Construction
Wooden joist
Function
Support frame for wooden joists
Item Color
Blue
Material
ABS
Pressure Flow Temp
K3
Size
300x300 mm
Version
Reversible
