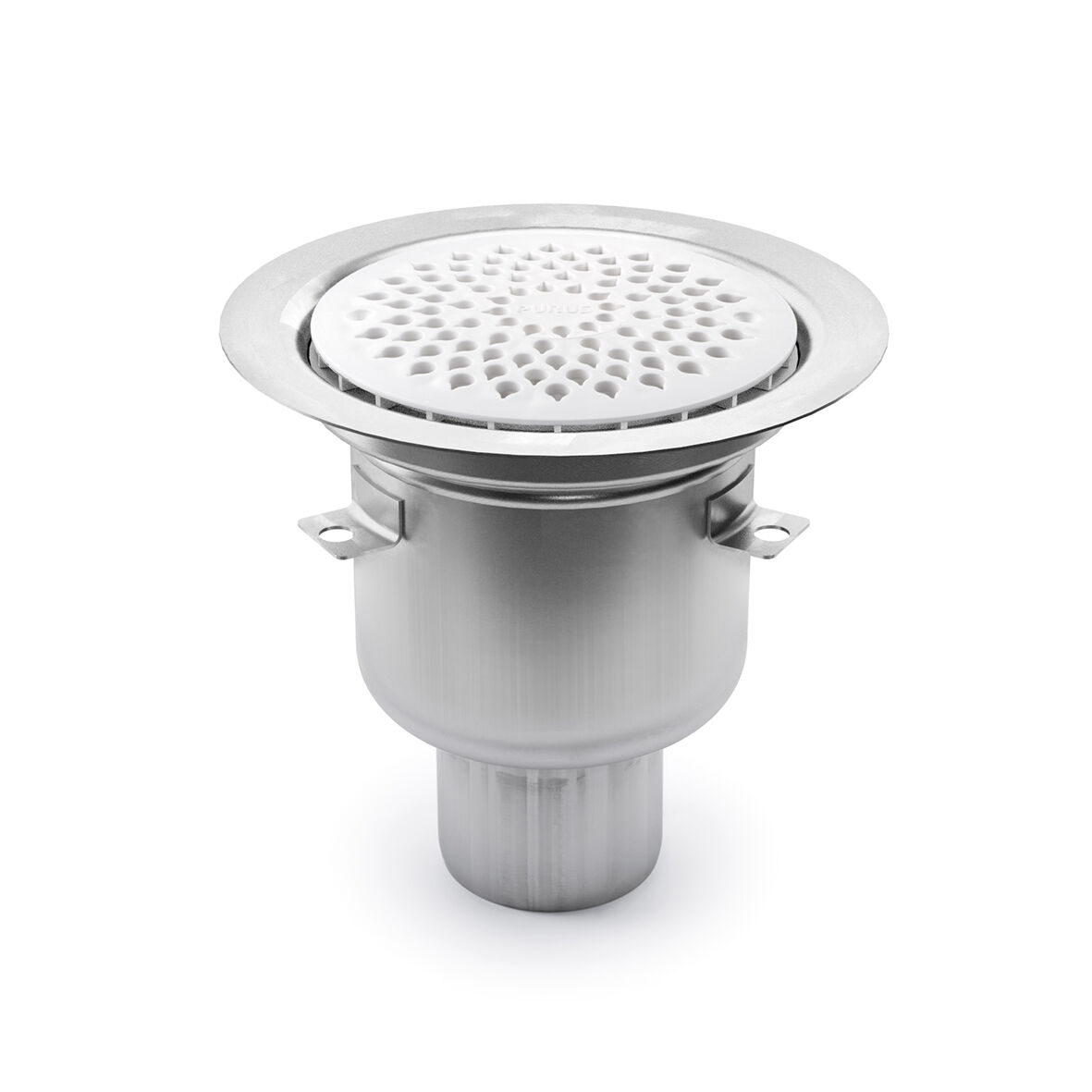

Floor drain Balder 75 P bottom

The Balder 75 P floor drain has a 75mm vertical outlet and is for installation in wooden or concrete joists. The Balder floor drain comes with a water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Balder 75 P floor drain has a 75mm vertical outlet and is for installation in wooden or concrete joists. The Balder floor drain comes with a water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • High resistance to chemicals
  • Corrosion resistant
  • Recyclable
  • High strength
RSK Number
7118070
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
Stainless
Material
PP, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,1 l/s
Size
150
Surface
Cold rolled (2B)
Version
With plastic grating
Installation instructions
Maintenance Instructions
Type approval
Tech drawing
