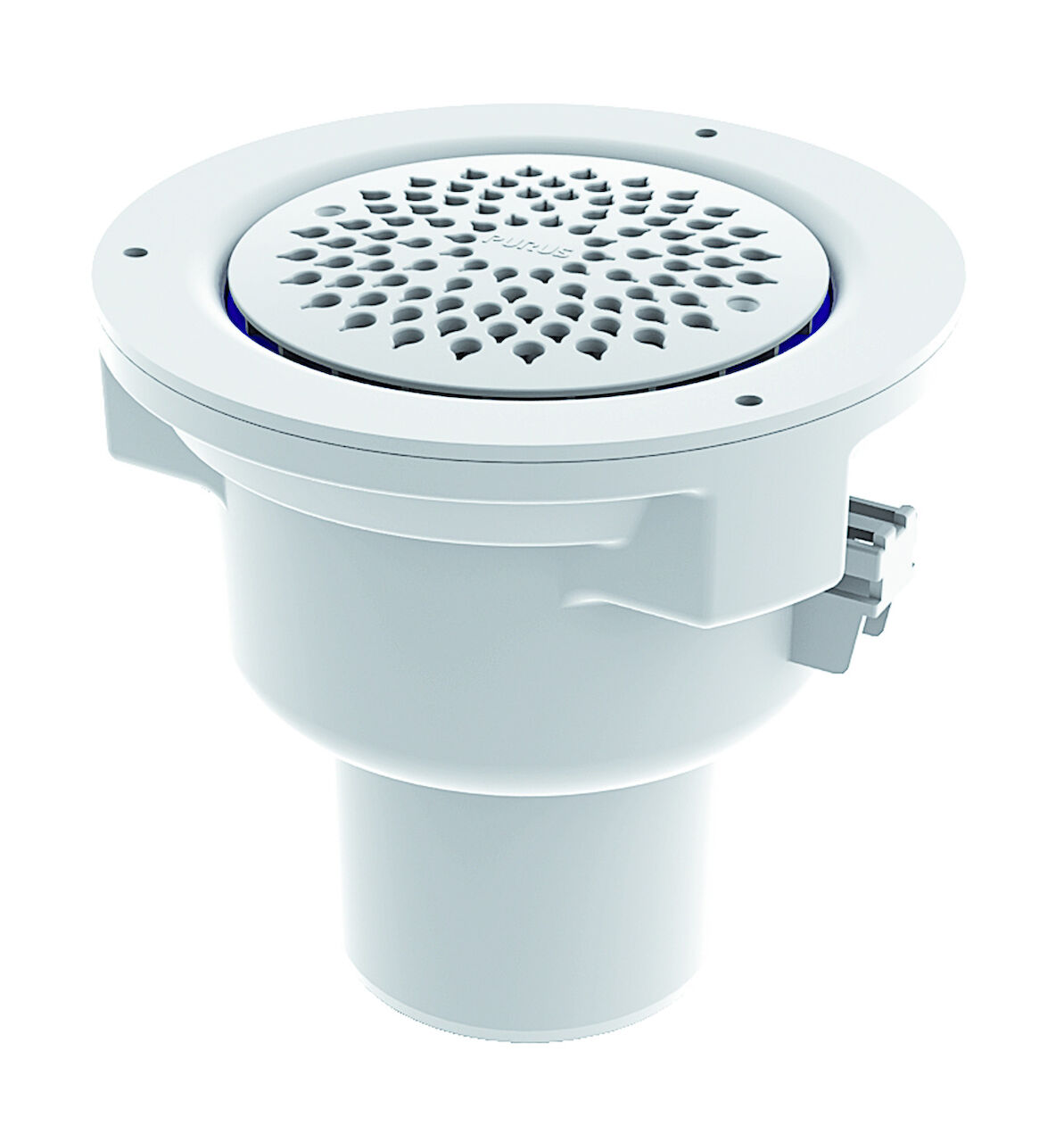

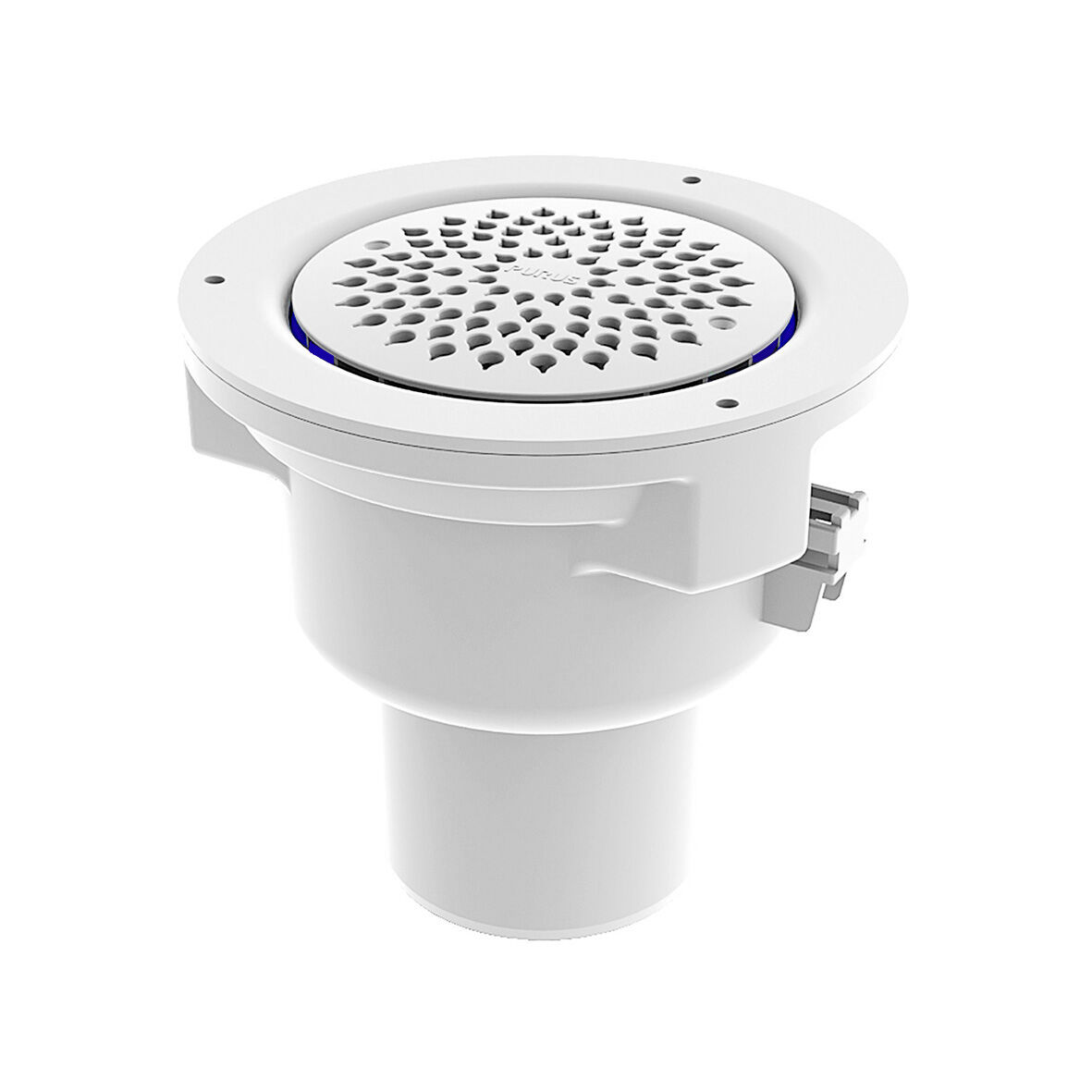

The Saga 110 Vertical floor drain has a 110mm vertical outlet and is suitable for installation in concrete floors. The floor drain has a built-in extension ring. This extension ring should sit in its lowest position when casting the concrete; and after grouting, the upper part can be raised by a maximum of 15mm and angled up to 4° from its starting position.The Saga floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from entering the drain during installation.
The automatic self-adjusting clamping ring is used for both waterproofing membranes and vinyl flooring with a thickness of 1.5mm to 2mm.
The automatic self-adjusting clamping ring is used for both waterproofing membranes and vinyl flooring with a thickness of 1.5mm to 2mm.
- Built-in extension ring that is adjustable and tiltable after installation
- Adapted for concrete floors
- The Saga comes complete with an automatic clamping ring, water trap and grating
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
RSK Number
7113611
Dimension
Ø110 mm
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
PP, Unleaded brass
Pressure Flow Temp
1,4 l/s
Size
Ø150 mm
Version
With plastic grating
