Floor gully fixture Bifrost

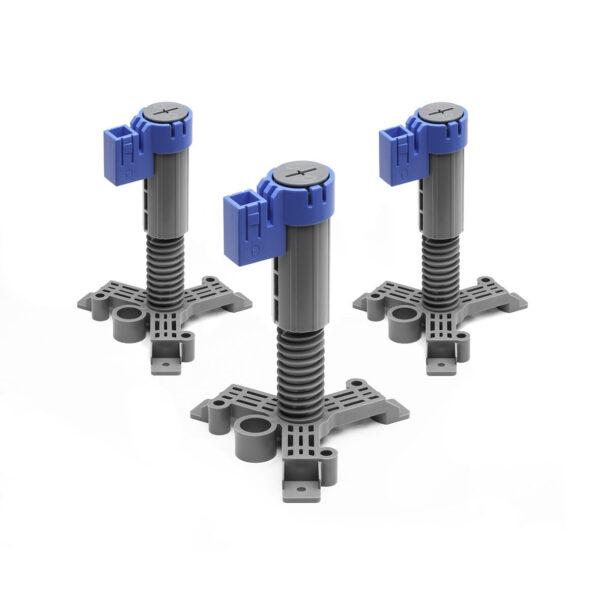

The Bifrost installation support consists of 3 legs and is designed for installation of Purus’ plastic floor drains with side brackets in concrete floors. The support legs are adjustable between 155-210mm, and can also be cut down to 65mm. The support feet have four different installation options: nail gun and washer; screw and plug; nail plug; EPS fastener and nail; or alternatively can be fixed and fastened. The Bifrost support does not fit the Brage, Mini Brage, Loki or Flex as these drains do not have side brackets. For installation of these, we recommend The Midgård installation support.

The Bifrost installation support consists of 3 legs and is designed for installation of Purus’ plastic floor drains with side brackets in concrete floors. The support legs are adjustable between 155-210mm, and can also be cut down to 65mm. The support feet have four different installation options: nail gun and washer; screw and plug; nail plug; EPS fastener and nail; or alternatively can be fixed and fastened. The Bifrost support does not fit the Brage, Mini Brage, Loki or Flex as these drains do not have side brackets. For installation of these, we recommend The Midgård installation support.
Item Number
7129929
Floor Construction
Concrete flooring
Material
ABS, PP
Version
Adjustable height
Item Color
Grey
Function
For installation in concrete floor
Installation instructions
Tech drawing
