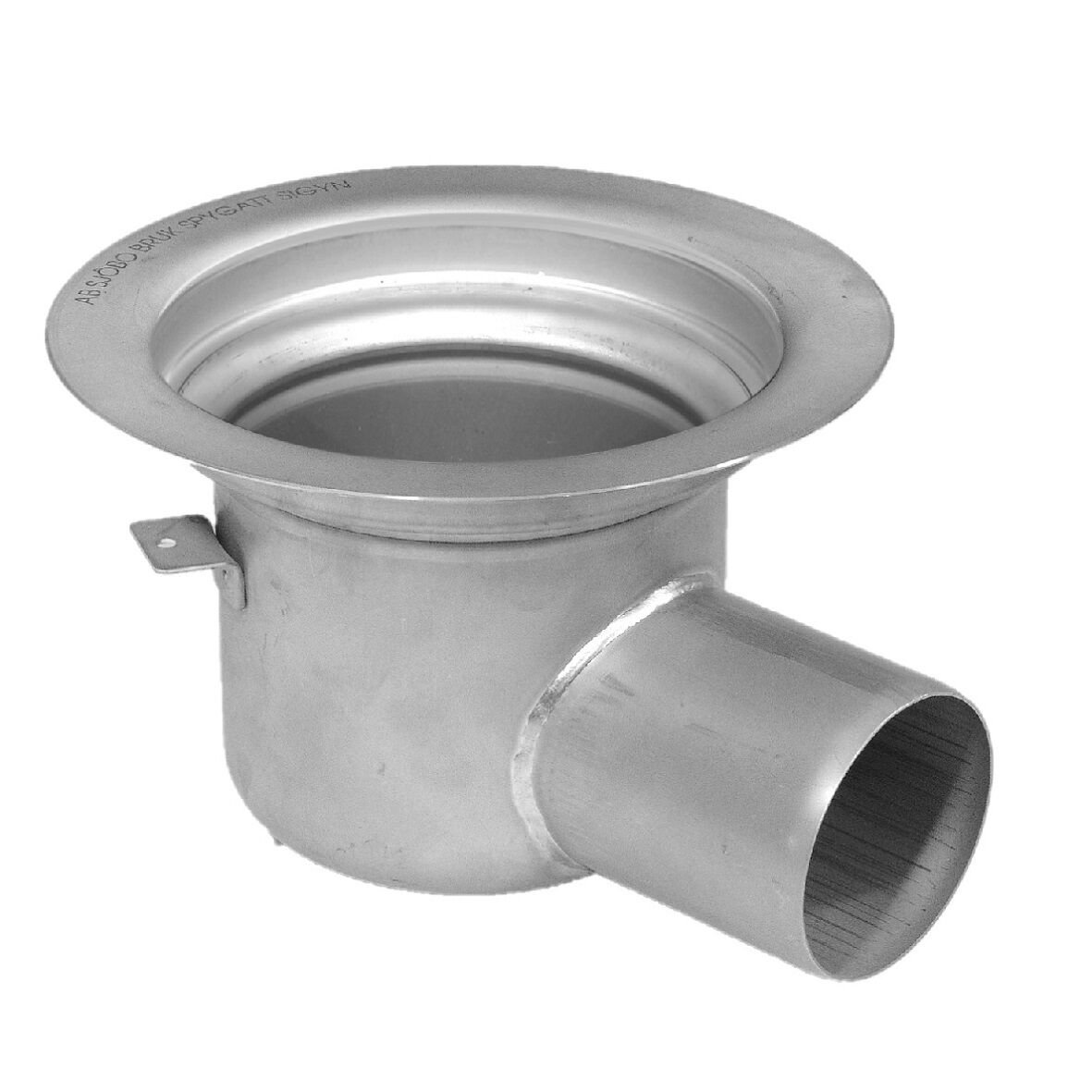

Outlet gully untrapped Ø75 side P

Outlet gully untrapped in acid-resistant stainless steel with Ø75 side outlet and Ø110 connection to the drainage channel.

Outlet gully untrapped in acid-resistant stainless steel with Ø75 side outlet and Ø110 connection to the drainage channel.
  • Stainless steel outlet gully
  • Rotatable by 360° degrees
Outlet gully untrapped in acid-resistant stainless steel with Ø75 side outlet and Ø150 connection to the drainage channel.
  • Outlet gully without water trap, can be retrofitted
  • Stable anchor support for easy installation
  • Rotatable through 360° degrees
Outlet gully untrapped in acid-resistant stainless steel with Ø75 side outlet and Ø220 connection to the drainage channel.
  • Outlet gully without water trap, can be retrofitted
  • Stable anchor support for easy installation
  • Rotatable through 360° degrees
Outlet gully untrapped in acid-resistant stainless steel with Ø75 vertical outlet and Ø150 connection to the drainage channel.
  • Outlet gully without water trap, can be retrofitted
  • Stable anchor support for easy installation
  • Rotatable through 360° degrees
RSK Number
7099506
Construction Height
125
Flow
3,6
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
3,6 l/s
Size
110
Surface
Cold rolled (2B)
Version
Untrapped
Item Number
HA305405PR
Construction Height
196
Flow
>5,2
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Size
150
Surface
Cold rolled (2B)
Version
Untrapped
RSK Number
7099517
Construction Height
171
Flow
>5,2
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
5,2 l/s
Size
220
Surface
Cold rolled (2B)
Version
Untrapped
RSK Number
7099514
Construction Height
137
Flow
>5,2
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
5,2 l/s
Size
150
Surface
Cold rolled (2B)
Version
Untrapped
