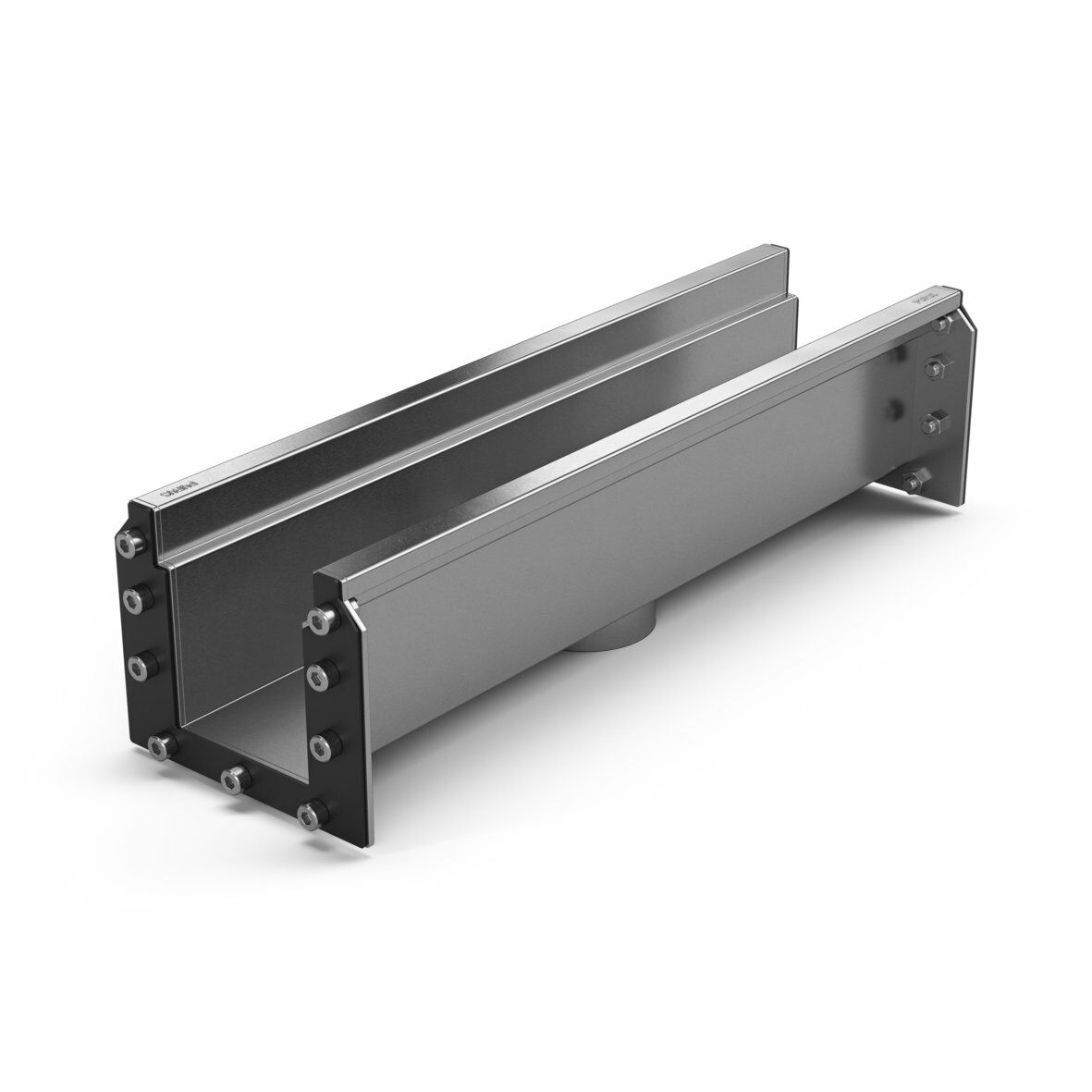

Purus channel 100 module 110-110 500 mid sect. incl. outlet

Purus channel 100 modul 110 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide, has no fall of which the height is 110 mm and 110 mm and a length of 500 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.

Purus channel 100 modul 110 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide, has no fall of which the height is 110 mm and 110 mm and a length of 500 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
Size
500x100
Item Number
856917
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Concrete
Surface
Pickled
Version
Do not forget grid/grating
Item Color
Stainless
Outlet Dimension
Bottom/side in plastic or stainless steel in Ø50, Ø75 or Ø 110 mm
Function
Central outlet
