Purus channel 200 tile/glueing flange mid-outlet

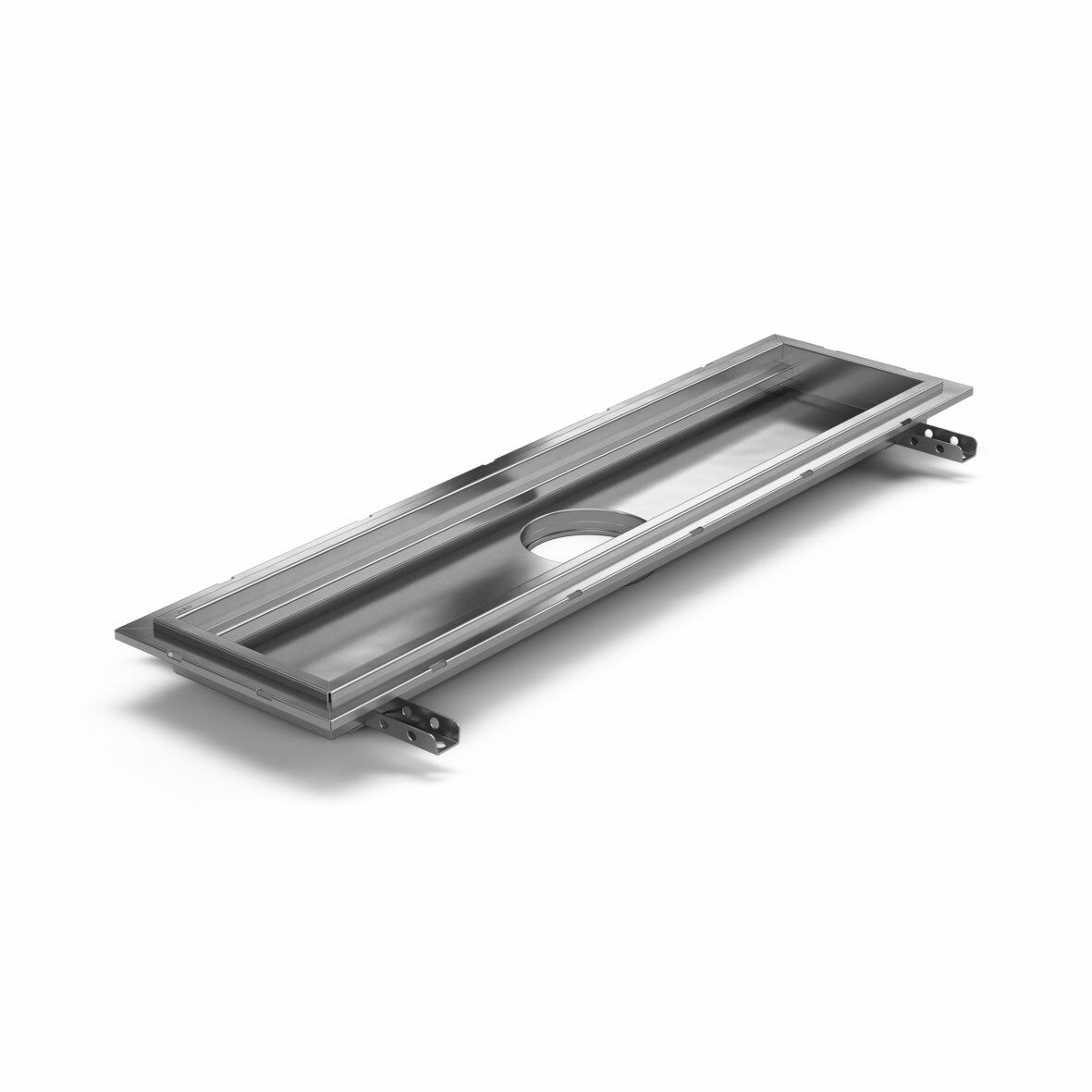

Purus channel 200 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 600×200 mm with a mid outlet and is intended for tile flooring. The floor channel needs to be supplemented with a grating/grid depending on the environment and outlet house in plastic or acid-resistant stainless steel.

Purus channel 200 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 600x200 mm with a mid outlet and is intended for tile flooring. The floor channel needs to be supplemented with a grating/grid depending on the environment and outlet house in plastic or acid-resistant stainless steel.
Purus channel 200 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1000x200 mm with a mid outlet and is intended for tile flooring. The floor channel needs to be supplemented with a grating/grid depending on the environment and outlet house in plastic or acid-resistant stainless steel.
Purus channel 200 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 1500x200 mm with a mid outlet and is intended for tile flooring. The floor channel needs to be supplemented with a grating/grid depending on the environment and outlet house in plastic or acid-resistant stainless steel.
Purus channel 200 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 2000x200 mm with a mid outlet and is intended for tile flooring. The floor channel needs to be supplemented with a grating/grid depending on the environment and outlet house in plastic or acid-resistant stainless steel.
Size
600x200
Item Number
818080M
Floor Construction
Concrete flooring
Material
Stainless steel 1.4301
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
1000x200
Item Number
818082M
Floor Construction
Concrete flooring
Material
Stainless steel 1.4301
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
1500x200
Item Number
818084M
Floor Construction
Concrete flooring
Material
Stainless steel 1.4301
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
2000x200
Item Number
818085M
Floor Construction
Concrete flooring
Material
Stainless steel 1.4301
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
