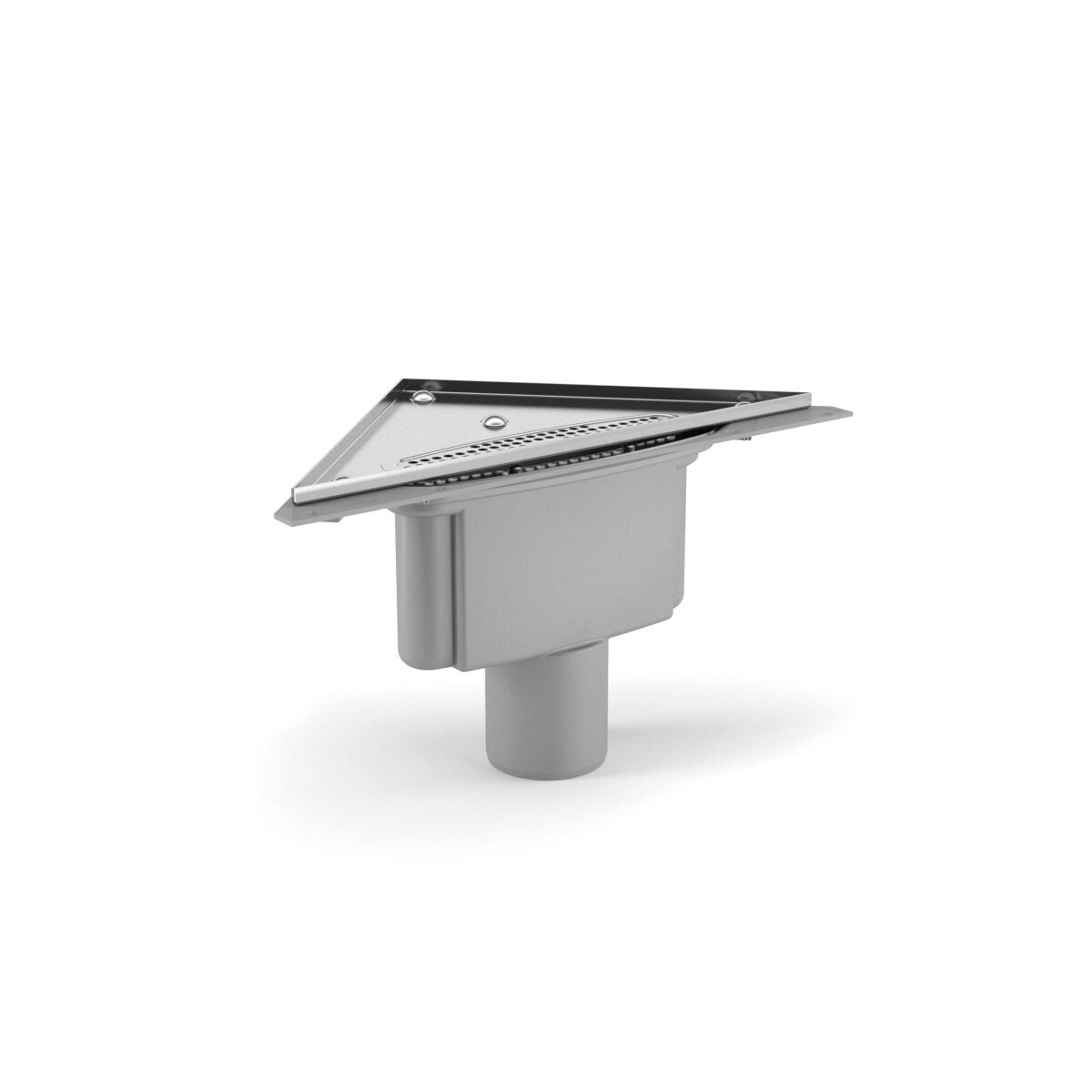

The Purus Corner is a floor drain body with a vertical 75 mm outlet. It can be installed in wooden or concrete joists. The Purus Corner comes with a removable NOOD water trap, strainer, stainless steel clamping ring, stainless steel frame and installation kit. It is compatible with the Purus Corner grates, which are sold separately. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. This floor drain can be installed in the corner against the wall or elsewhere in the room.
- Delivered without a grate to give the option of choosing the grate separately
- NOOD water trap as standard
- Can be installed close to the wall
- Type approved by RISE and tested according to EN-1253
RSK Number
7114655
Floor Construction
Concrete/Wood
Floor Covering
Tiles
Function
Bottom outlet
Item Color
Grey
Material
ABS, PP, Stainless steel 1.4301
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
374x266x266
Version
With frame and no grating
