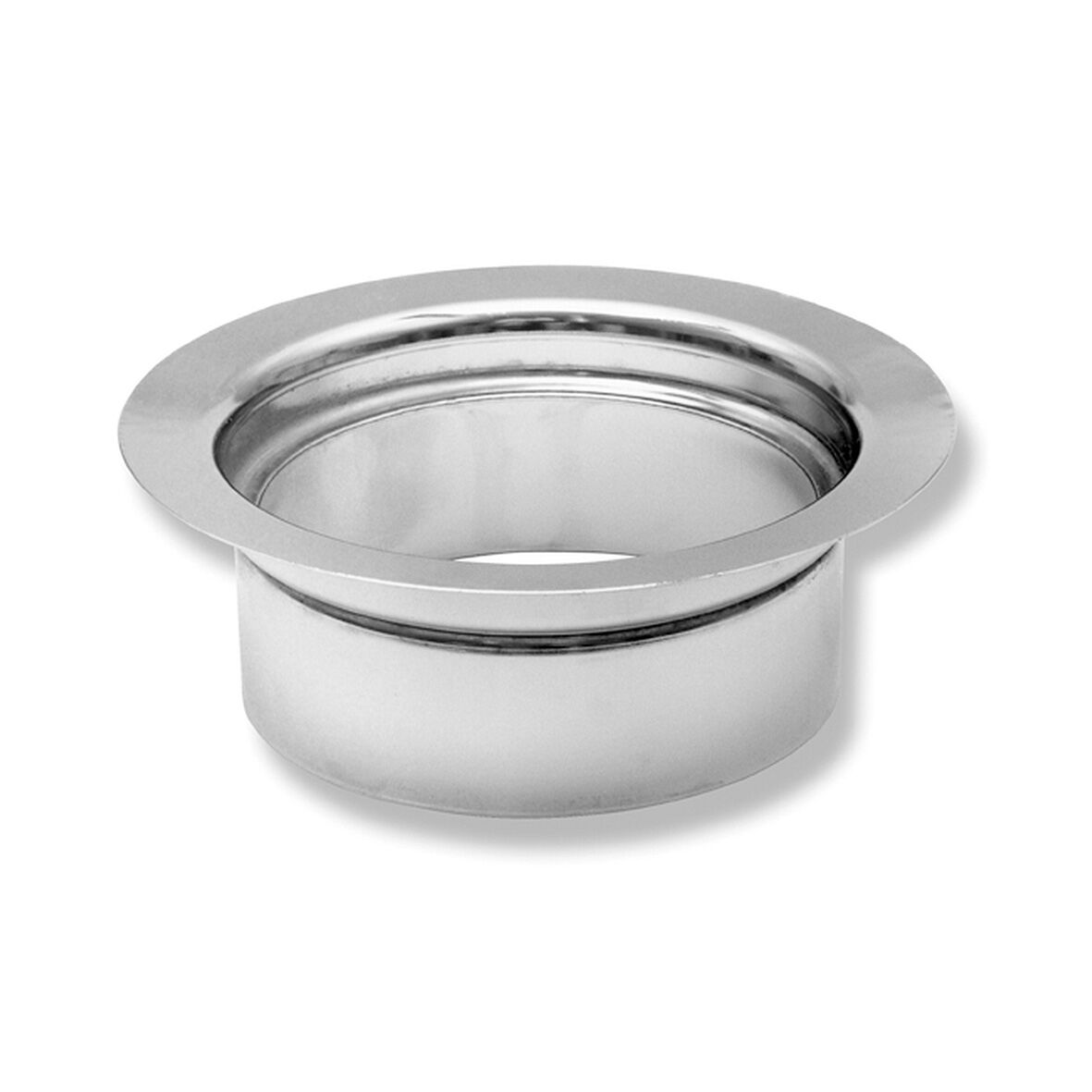

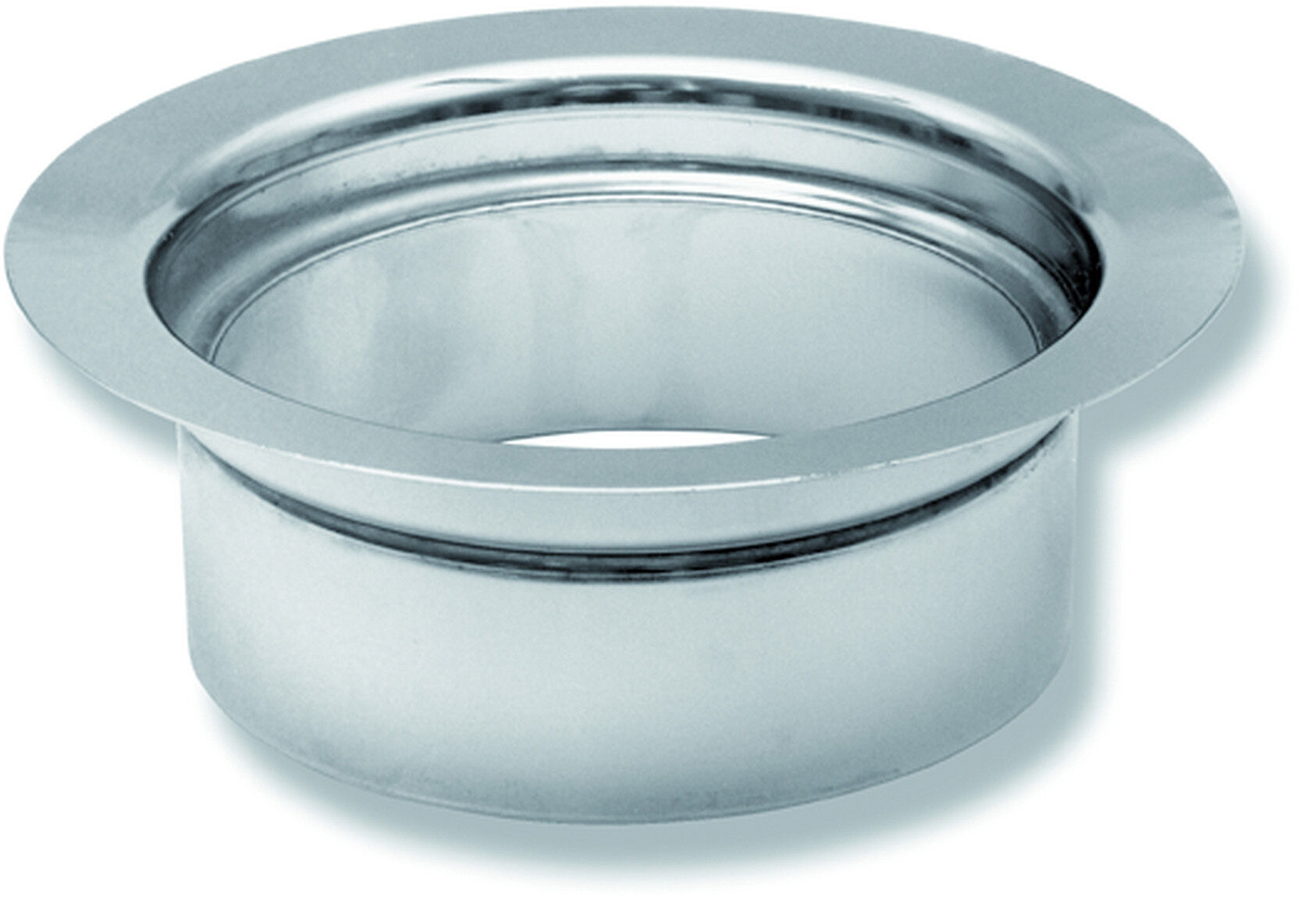

Extension ring stainless Ø150 x 50

Extension ring 50 in acid-resistant stainless steel with round flange, intended for Purus’ stainless steel floor drains with a grate diameter of 150mm. Comes with gasket. The extension ring is used when you need to raise the flange, for example when levelling concrete. Raises 50mm and can be cut.

Extension ring 50 in acid-resistant stainless steel with round flange, intended for Purus' stainless steel floor drains with a grate diameter of 150mm. Comes with gasket. The extension ring is used when you need to raise the flange, for example when levelling concrete. Raises 50mm and can be cut.
  • The stainless steel extension rings can only be mounted in Purus floor drains made of stainless steel
  • Quick and easy installation when the extension ring is inserted in the seat on the floor drain
Extension ring 100 in acid-resistant stainless steel with round flange, intended for Purus' stainless steel floor drains with a grate diameter of 150mm. Comes with gasket. The extension ring is used when you need to raise the flange, for example when levelling concrete. Raises 100mm and can be cut.
  • The stainless steel extension rings can only be mounted in Purus floor drains made of stainless steel
  • Quick and easy installation when the extension ring is inserted in the seat on the floor drain
RSK Number
7133623
Function
Can be cut
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
150
Size
50
Surface
Cold rolled (2B)
Version
With sealing cuff
RSK Number
7133624
Construction Height
100
Function
Can be cut
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
150
Size
100
Surface
Cold rolled (2B)
Version
With sealing cuff
Installation instructions
Maintenance Instructions
Tech drawing
Installation instructions
Maintenance Instructions
Tech drawing
