Purus channel square resin

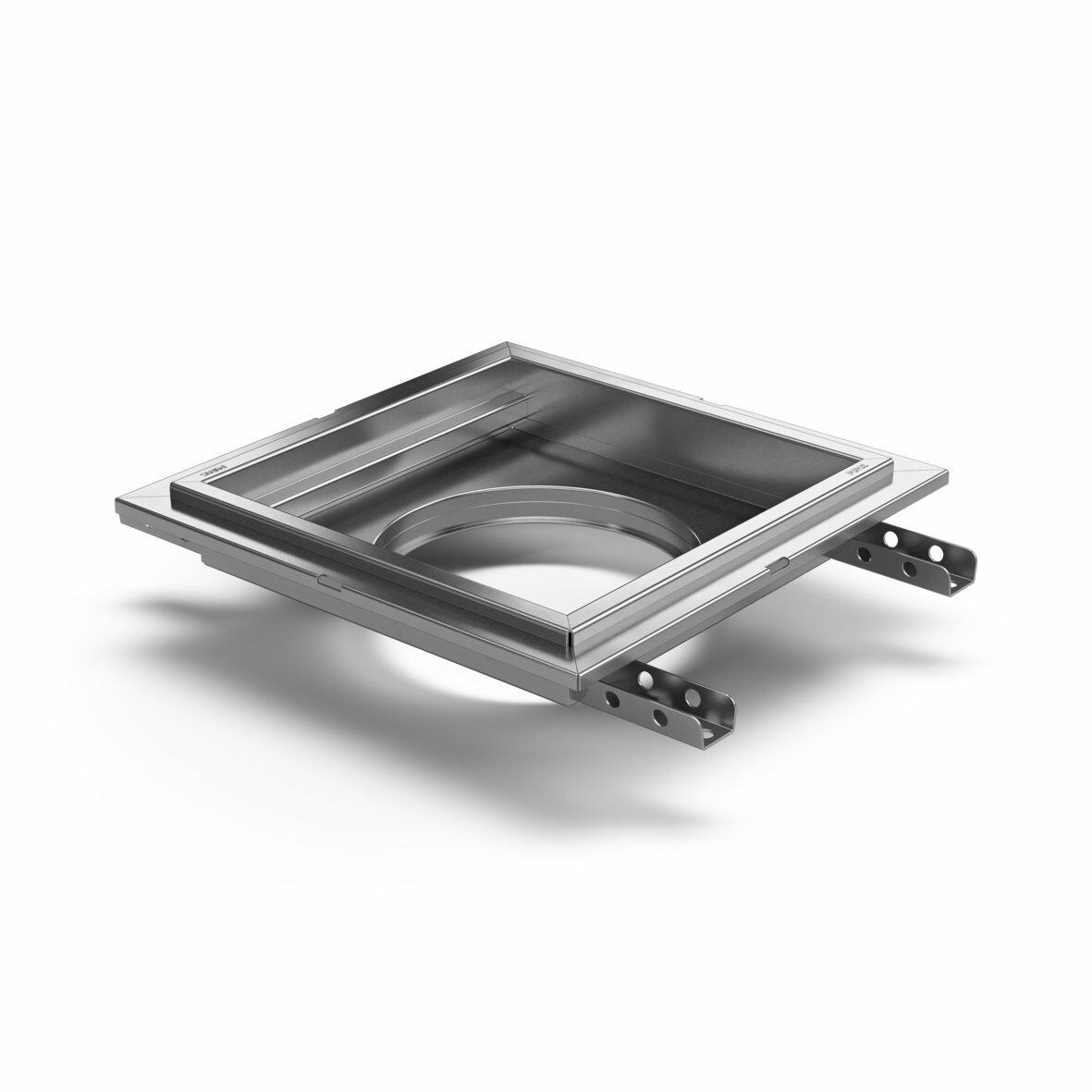

Purus channel square 200 is a floor channel made of acid-resistant stainless steel for installation in concrete flooring. The floor channel is 200×200 och är avsedd för klinkergolv som ytskikt. The floor channel needs to be supplemented with grating/grid depending on the environment and outlet house in acid-resistant stainless steel.

Purus channel square 200 is a floor channel made of acid-resistant stainless steel for installation in concrete flooring. The floor channel is 200x200 och är avsedd för klinkergolv som ytskikt. The floor channel needs to be supplemented with grating/grid depending on the environment and outlet house in acid-resistant stainless steel.
Purus channel square 300 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is 300x300, suitable for concrete floor build-ups only. The floor channel needs to be supplemented with grating/grid depending on the environment and outlet house in acid-resistant stainless steel.
Size
200x200x50
Item Number
818190
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
Size
300x300x50
Item Number
818191
Floor Construction
Concrete flooring
Material
Acid-resistant stainless steel 1.4404
Floor Covering
Tile floor with glueing flange
Construction Height
60
Surface
Pickled
Version
Do not forget grid/outlet house
Item Color
Stainless
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Function
Central outlet
